About Using OBD2 Products in Combination

The following shows a list of the possible combinations in which our OBD2 products can be used.
Our "OBD2 Wiring Kit" (sold separately) not only makes installation simpler, it also allows the user to combine products from different companies. (Some combinations are not possible)

User's Manual (PDF)
OBD-EH OBD2 Wiring Kit

OBD-EH

OBD2 Wiring kit

¥3,200

Distinguishing Products

PROGAUGE (PT5-X excluded), REV COUNTER

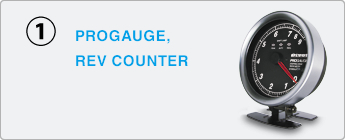

①PROGAUGE, REV COUNTER

3-drive · FLAT (THF/THF2)
3-drive · COMPACT (THC)
3-drive 08 Model (THR)

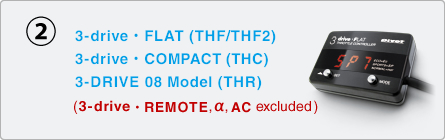

②3-drive · FLAT, COMPACT, 3-DRIVE 08 Model (THR)

(3-drive · REMOTE, α, AC, EVO, PRO, LIGHT excluded)

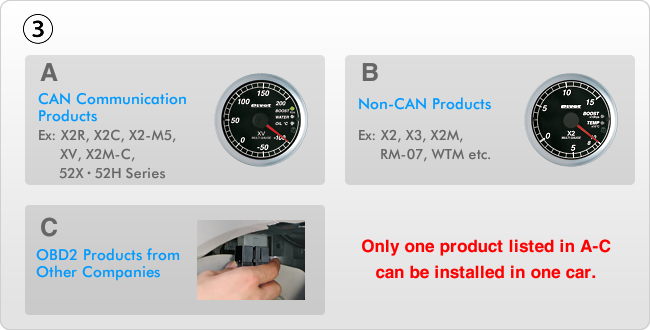

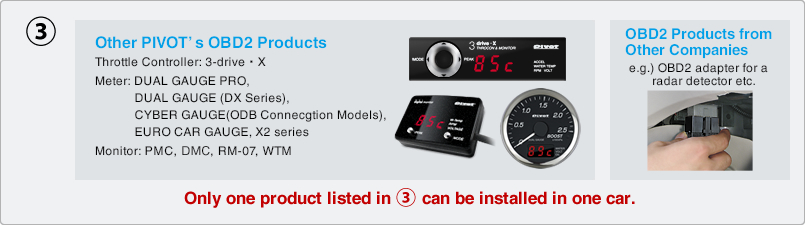

Other PIVOT's OBD2 Products

  • Throttle Controller : 3-drive · X
  • Meter : COMPACT GAUGE52, GEKKO-X, DUAL GAUGE PRO, DUAL GAUGE (DX Series), CYBER GAUGE (OBD Connection Models), EURO CAR GAUGE, X2 Series
  • Monitor : OBM, PMC, DMC, RM-07, WTM
3DX, DUAL GAUGE PRO, OB MONITOR

OBD2 Products from Other Companies

e.g.) OBD2 adapter for a radar detector etc.

OBD2 adapter

Only one product listed in can be installed in one car.

List of Possible Combinations

When using in combination, each product must be of the type for that model of car.

Product Combinations Possibility Possibility with OBD2 Kit
Yes (NOTE 1) Yes
Yes (NOTE 1) Yes
Yes (NOTE 2) Yes
Yes (NOTE 3) Yes (NOTE 4)
No No

NOTE 1: Possible if either is wired directly.
NOTE 2: Possible if is wired directly.
NOTE 3: Possible if and are wired directly.
NOTE 4: is connected by connector.
